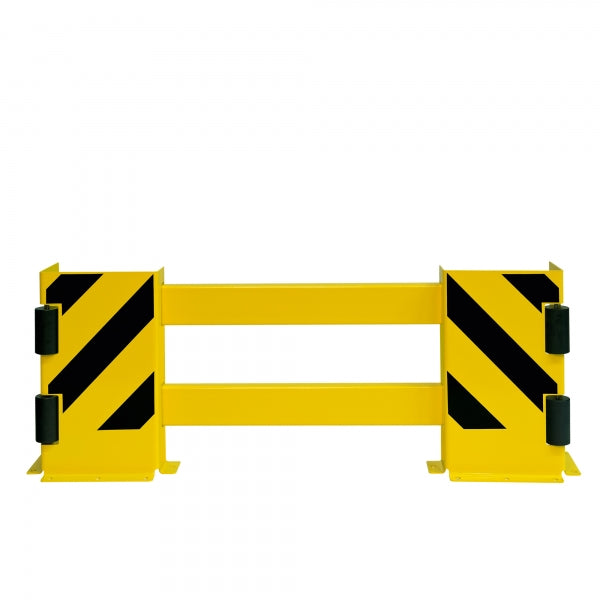

BLACK BULL Racking End Frame Protectors Type C | Hybrid Steel & Plastic Pallet Rack Guard

Maximise your warehouse safety with the latest addition to our range: the BLACK BULL Racking End Frame Protectors Type C. This innovative system upgrades our traditional racking guards by replacing rigid steel crossbeams with highly flexible, shock-absorbing Polypropylene (PP) lateral rails. Paired with robust steel end supports, this hybrid design provides the ultimate protection for vulnerable pallet racking uprights, actively absorbing collision forces to minimise damage to both your storage infrastructure and works vehicles.

Key Features and Benefits

  • Hybrid Impact Absorption: Cleverly combines the unyielding strength of heavy-duty steel end frames with the dynamic flexibility of Polypropylene (PP) lateral rails to actively dissipate collision forces.

  • Enhanced Wrap-Around Defence: The steel support end sections feature specially designed extended outer flanges, providing crucial wrap-around protection against dangerous sideways impacts.

  • Damage Reduction: The yielding nature of the plastic rails significantly reduces the severity of impact damage to both the racking structure and the colliding forklift trucks.

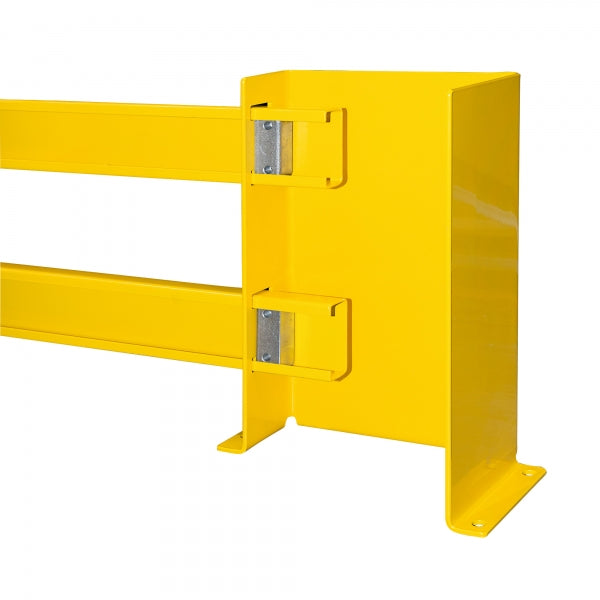

  • Straightforward Assembly: Engineered for quick, hassle-free installation. Simply bolt down the first end section, insert the lateral rails, slide the second end section to your desired width, and secure it to the floor.

  • High Visibility: Finished in a bright, powder-coated yellow with striking black hazard striping on the end frames to effectively alert drivers to structural boundaries.

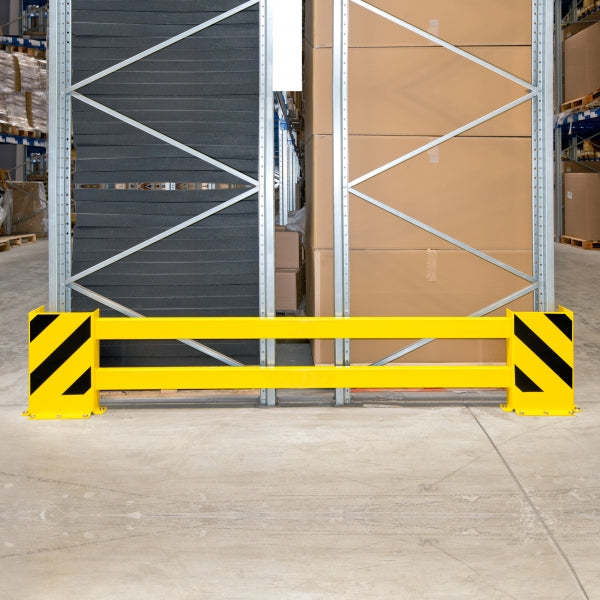

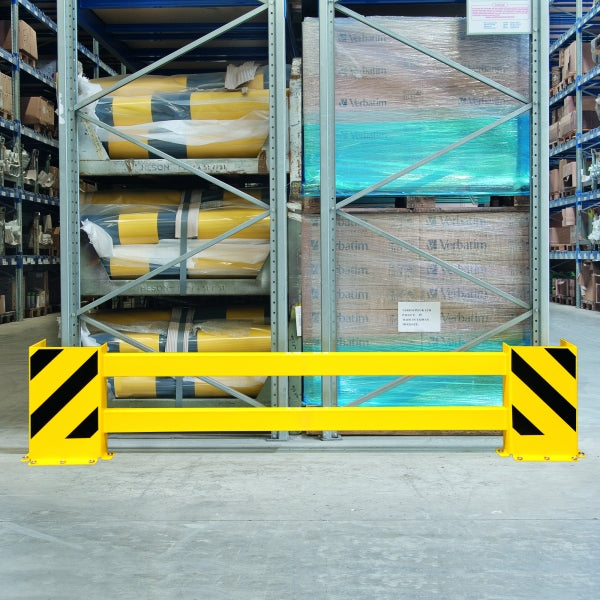

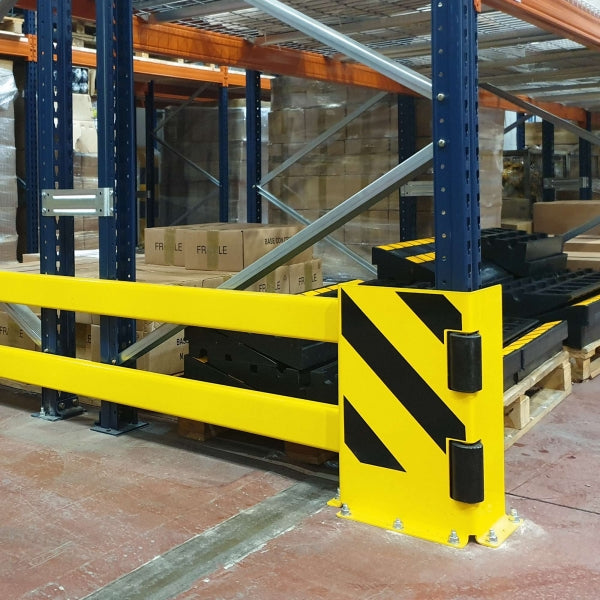

Versatile Industrial Applications

This advanced hybrid racking protector is an essential preventative safety measure for modern, high-traffic commercial environments. It is highly recommended for busy warehouses, active distribution depots, logistics hubs, and manufacturing units where material handling equipment operates in close proximity to valuable storage structures.

Product Specifications

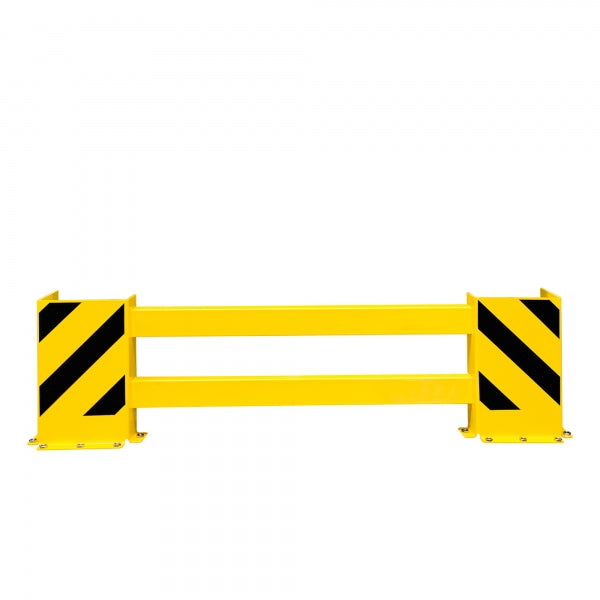

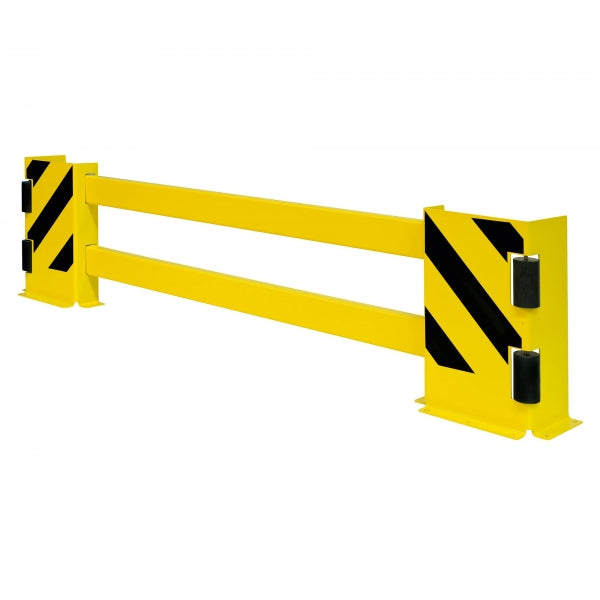

  • Complete Kit Contains: 2 x Steel End Frames and Polypropylene (PP) Lateral Rails

  • Steel End Frame Dimensions: 400mm (H) x 300mm (W) x 190mm (D)

  • Steel Wall Thickness: 3mm

  • Lateral Rail Dimensions (PP): 74mm (H) x 52mm (D) x 5mm wall thickness

  • Available Width Configurations: Available in three distinct versions designed to cover total end frame widths ranging from 900mm up to 2,700mm

  • Finish: Steel support frames are powder-coated yellow with black warning striping; PP lateral rails are solid high-visibility yellow

  • Installation Method: Surface mounted via bolt-down end sections (please note: floor fixing bolts are supplied separately)
