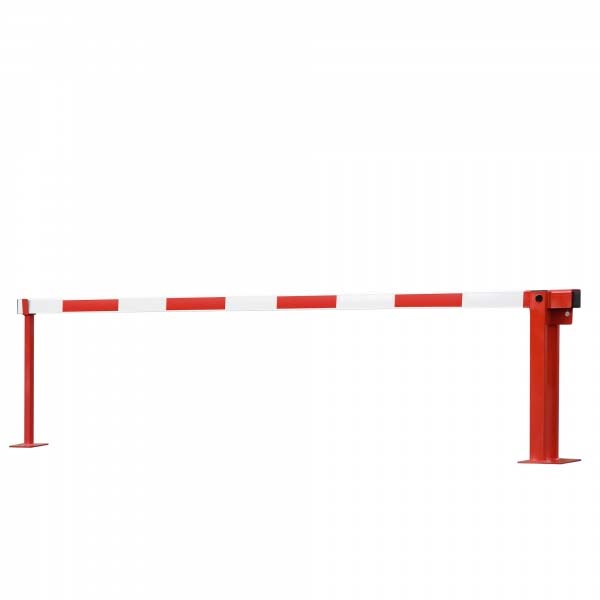

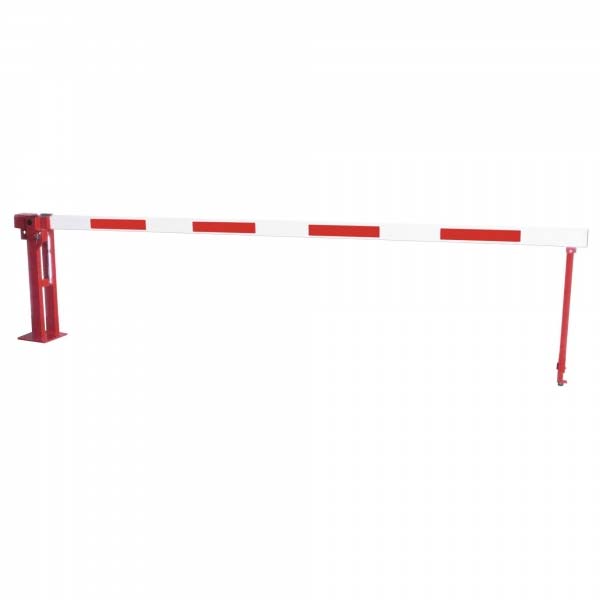

• COMPACT Boom Barrier with Gas damper
• Easily installed.

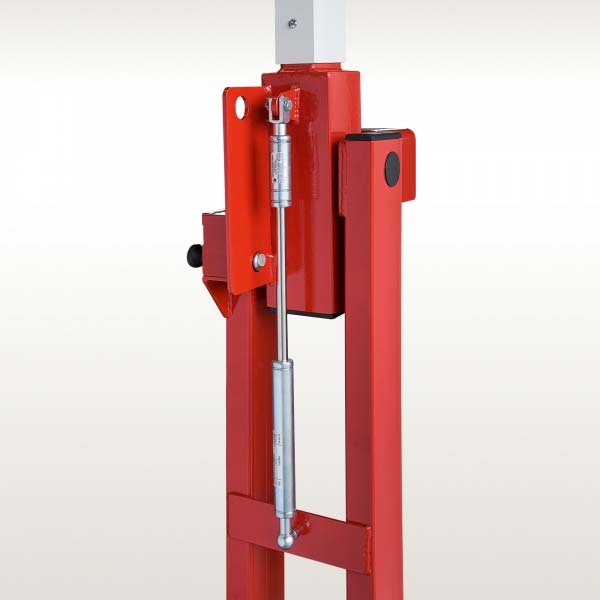

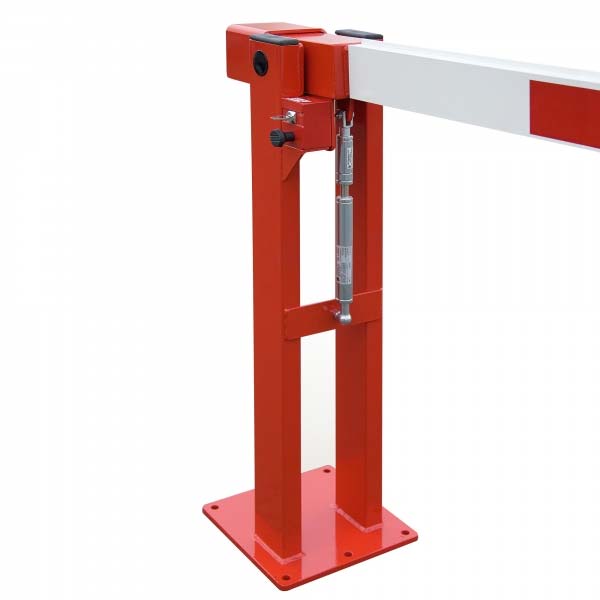

• Unique gas-strut assisted operation.
• Strong construction.
• ‘Anti-sit’ feature boom arm.

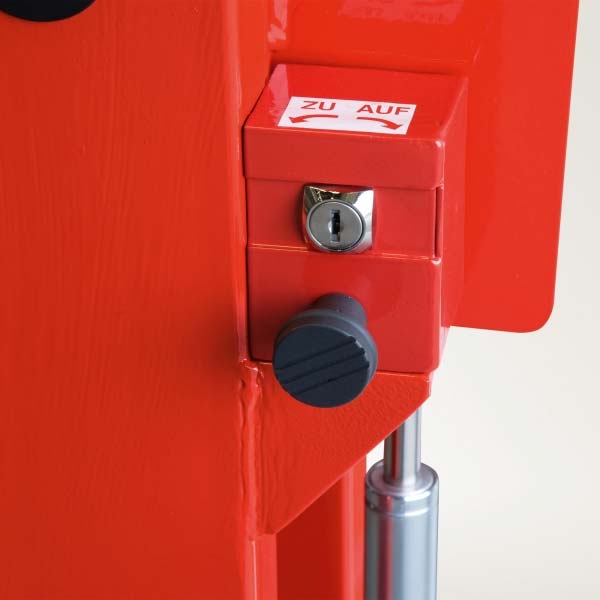

• Automatically locks in open or closed positions.
This COMPACT Boom Barrier with Gas damper is a re-design of the TRAFFIC-LINE System Boom Barrier, which has retained the gas-strut operated action, but has a completely new locking system, boom arm and pivot post. The result is an easily operated barrier with a modern streamlined appearance.

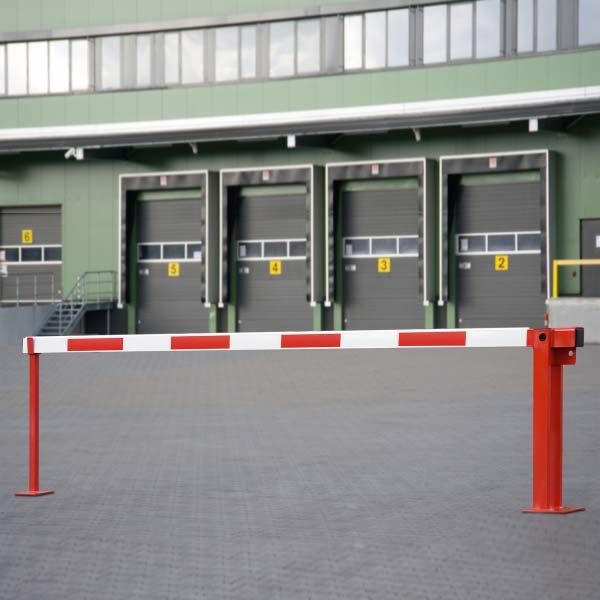

Entrances and exits to car parks, drives, industrial estates/areas, offices, public buildings etc. Options: Sub-surface fixing, non-automatic locking, triangular key locking, keyed alike locks, customer supplied locks.
Dims: 220 x 100 1,000mmH
Base plate: 295 x 295 x 10mmD
Finish: Galvanised & Powder coated
Size: 90 x 60mm
Max boom length: 6,350mm
Stripes: Red reflective
Locking Method: Automatic
Locking Style: Cylinder lock

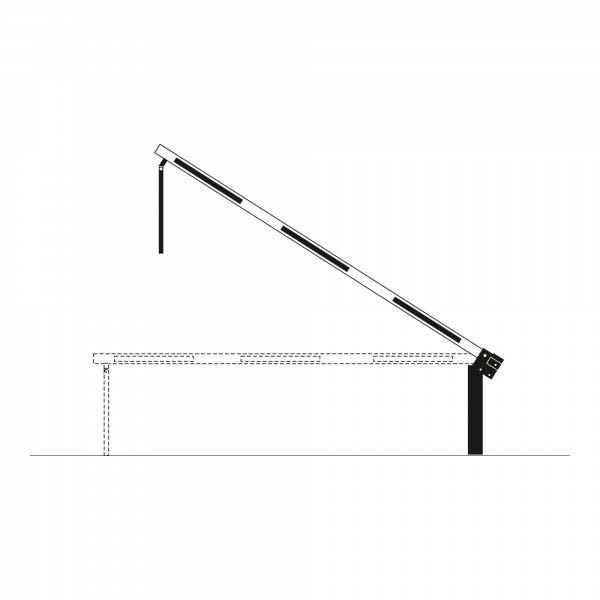

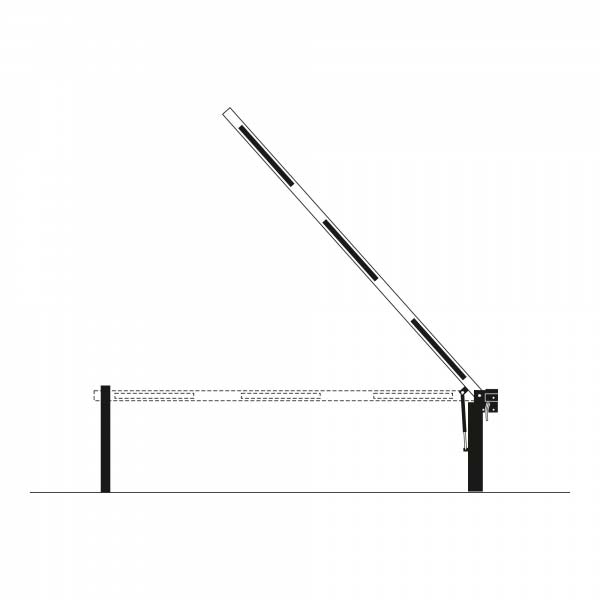

|Support Type||Overall Width||Drive Through Width|
|Pendulum Support Post||3,350mm||2,960mm|
|Pendulum Support Post||3,850mm||3,460mm|
|Pendulum Support Post||4,350mm||3,960mm|
|Pendulum Support Post||4,850mm||4,460mm|
|Pendulum Support Post||5,350mm||4,960mm|
|Pendulum Support Post||5,850mm||5,460mm|
|Pendulum Support Post||6,350mm||5,960mm|
|Fixed Support Post||3,350mm||2,880mm|
|Fixed Support Post||3,850mm||3,380mm|
|Fixed Support Post||4,350mm||3,880mm|
|Fixed Support Post||4,850mm||4,380mm|
|Fixed Support Post||5,350mm||4,880mm|
|Fixed Support Post||5,850mm||5,380mm|
|Fixed Support Post||6,350mm||5,880mm|
For Sub-surface fixing the optional Sub-Surface Conversion Anchor is available here.
Delivery time for this product: 20 working days
Please Note: This item is delivered to you directly from the manufacturer, as such we can't always guarantee the delivery time stated above. If there is to be any delay we will contact you as soon as possible.
If you require the items urgently please contact us. Please read our terms and conditions regarding items despatched directly by the manufacturer as specific return rules apply.
