COMPACT Access Height Restrictor - Fixed

• COMPACT Access Height Restrictor - Fixed
• Easily installed.
• Restricts access.
• Five integral height levels.
• Strong construction.

Applications:
Surface car parks, retail car parks, multi-story car parks etc.

Specifications:

Posts
• Size: 100 x 100 x 3mm square
• Base Plate 300 x 300mm. Drilled 6 holes 15mm Dia
• O/all Height: 3,010mm

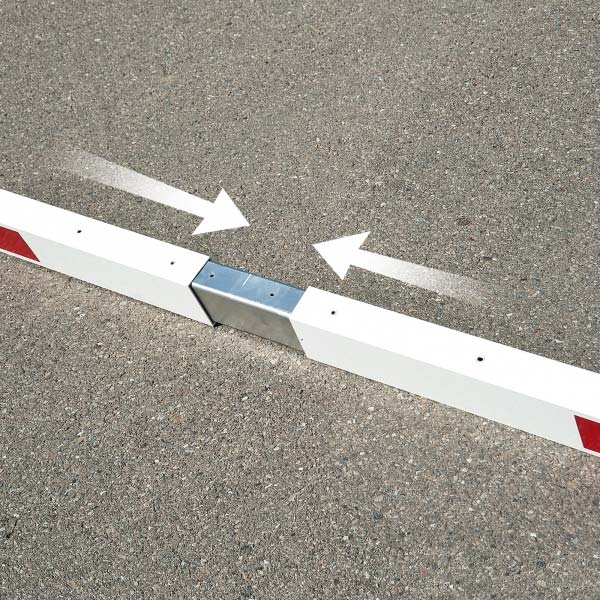

• Widths: 3,230mm to 10,230mm (Above 6,000mm long Cross bar is supplied in two lengths and joined using steel insert)

Height Restrictor

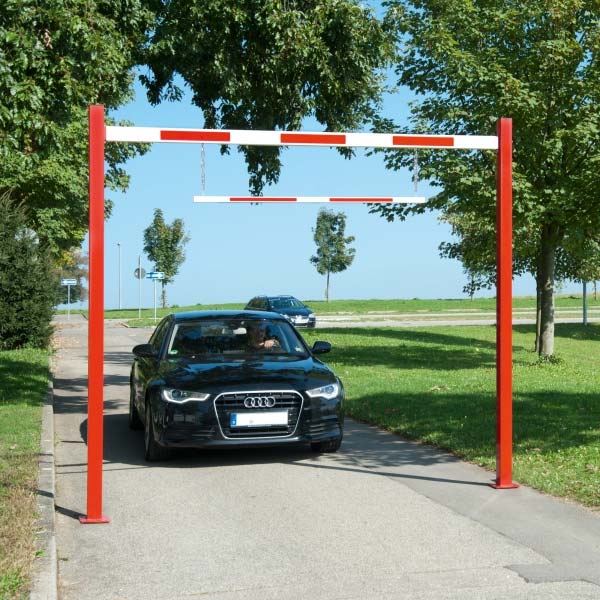

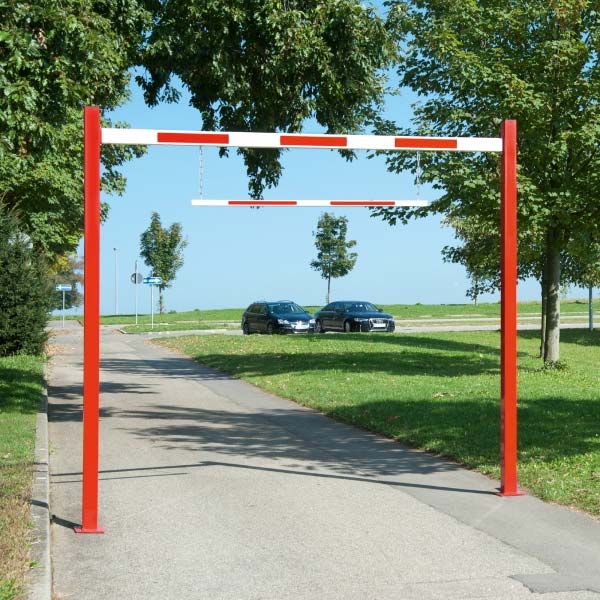

• Adjustable heights: 2,800mm, 2,650mm, 2,500mm, 2,350mm and 2,200mm (Heights can be reduced further by up to 400mm with nudge bars suspended on chains)
• Cross bar: 105mm x 60mm

Materials:
• Support Posts: Steel
• Cross bar: Aluminium
• Nudge bar: Aluminium

Finish:
• Posts: Hot Dip Galvanised and Powder coated Red
• Cross bar: White with Red Reflective panels

COMPACT Access Height Restrictor – Fixed is a Strong steel and aluminium construction ideal for restricting access to vans, commercial vehicles, caravans, motorhomes etc. to car parks, traffic lanes, etc. Chain suspended nudge bars can reduce height by a further 400mm.

Overall Width	Clear Width
3,230mm	3,000mm
4,230mm	4,000mm
5,230mm	5,000mm
6,230mm	6,000mm
7,230mm	7,000mm
8,230mm	8,000mm
9,230mm	9,000mm
10,230mm	10,000mm

For Sub-surface fixing the optional Sub-Surface Conversion Anchor is available here. You will need to purchase 2 for this product.

For the optional Nudge Bar, click here.

Delivery time for this product: 20 working days

Please Note: This item is delivered to you directly from the manufacturer, as such we can't always guarantee the delivery time stated above. If there is to be any delay we will contact you as soon as possible.

If you require the items urgently please contact us. Please read our terms and conditions regarding items despatched directly by the manufacturer as specific return rules apply.
