COMPACT Access Height Restrictor – Pivot Action | Adjustable Swing Barrier System

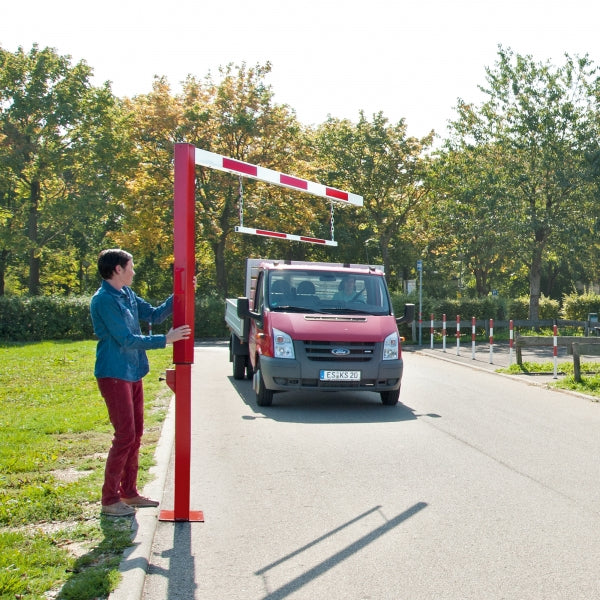

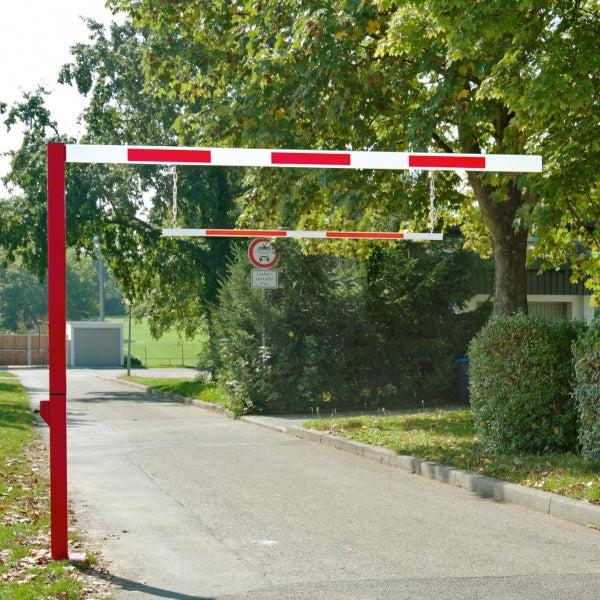

Effectively control site access and deter unauthorised over-height vehicles with the COMPACT Access Height Restrictor. Featuring a heavy-duty pivot action design, this robust steel and aluminium barrier prevents caravans, motorhomes, and commercial vans from entering restricted parking zones, while easily swinging open to grant immediate access for authorised transport or emergency vehicles. Fully lockable in both the open and closed positions and featuring multiple integral height adjustments, it delivers a highly adaptable and professional access control solution for any commercial or private facility.
Key Features and Benefits
-
Pivot Access Control: Easily rotates open to allow unhindered passage for emergency services, delivery lorries, and authorised site vehicles. The barrier can be securely locked in both the open and closed positions to strictly manage traffic flow.
-
Adjustable Clearance Levels: Features three integral clearance height settings (2,650mm, 2,500mm, and 2,200mm), allowing you to precisely tailor the restriction level to your specific site requirements upon installation.
-
Heavy-Duty Construction: Engineered with immensely strong 100mm square steel support posts and a lightweight yet rigid aluminium crossbar, ensuring long-term structural integrity and smooth, reliable manual operation.
-
High-Visibility Finish: The robust steel posts are fully hot-dip galvanised and powder-coated red, whilst the crossbar features high-contrast white and red reflective panels to guarantee outstanding driver visibility day and night.
-

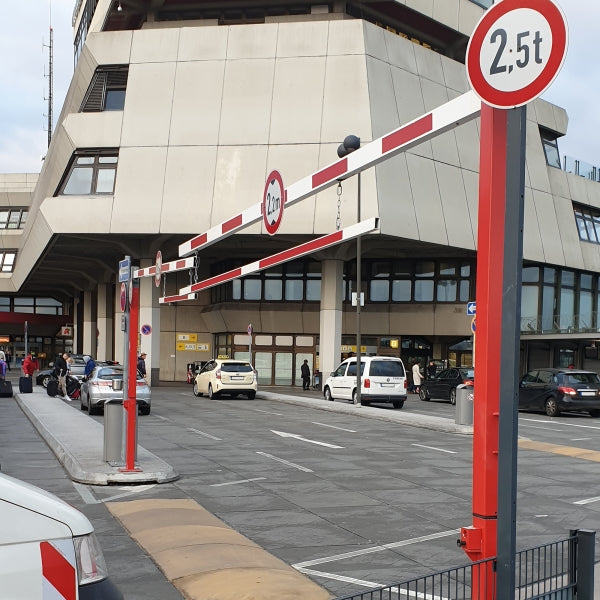

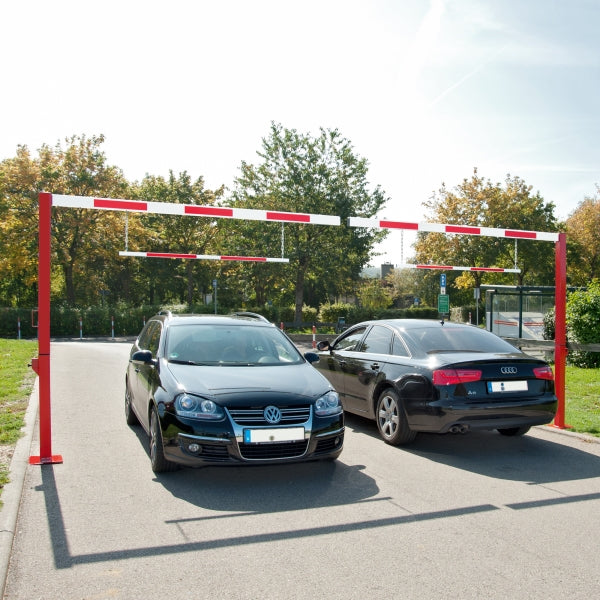

Scalable Spans: Available in standard single-span widths from 3,205mm to 5,205mm. For exceptionally wide entrances, two pivot assemblies can be installed opposing each other to seamlessly restrict access spans up to 10,450mm (or a maximum restricted overall width of 12,000mm).
-
Secure Locking Mechanisms: Supplied as standard with a secure triangular key lock, ensuring only authorised personnel can manipulate the barrier's position.
Versatile Commercial & Public Applications
This pivoting height restrictor is an essential security and traffic management asset for preventing unauthorised encampments, fly-tipping, or heavy commercial vehicle parking in restricted zones. It is highly recommended for surface and multi-storey car parks, retail parks, private estate roads, commercial driveways, and public leisure facilities.
Product Specifications
-
Product Design: Pivoting overhead access height restriction barrier
-
Pivot Post Dimensions: 100mm x 100mm x 3mm (Square steel profile)
-
Overall Post Height: 2,810mm
-
Adjustable Clearance Heights: 2,650mm, 2,500mm, or 2,200mm
-
Base Plate Dimensions: 300mm x 300mm (Drilled with 6 x 15mm diameter holes for heavy-duty surface bolting)
-
Crossbar Dimensions: 105mm x 60mm (Aluminium profile)
-
Available Single Widths: 3,205mm to 5,205mm
-
Material & Finish (Posts): Steel — Hot-dip galvanised and powder-coated Red
-
Material & Finish (Crossbar): Aluminium — White with Red Reflective panels
-
Standard Locking Method: Triangular key system
Available Options & Accessories
-
Suspended Nudge Bar: An optional 40mm x 30mm x 2mm aluminium visual warning bar (White with red reflective panels) that reduces the clearance height by up to a further 400mm. Supplied complete with a 6mm gauge steel suspension chain and threaded connectors.
-
Alternative Locking Systems: The standard triangular lock can be upgraded to a highly secure integral cylinder lock, or a locking pin mechanism designed to be secured by a standard padlock (padlock not supplied).
-
Sub-Surface Fixing: Instead of surface bolt-down base plates, the support posts can be supplied with extended roots specifically designed for permanent, sub-surface fixing directly into concrete footings.
(Safety Note: We strongly recommend that appropriate advance warning signage is installed in conjunction with this product to clearly alert approaching drivers to the restricted height limit).
